Features&Benefits

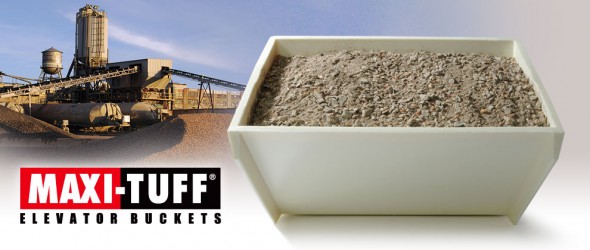

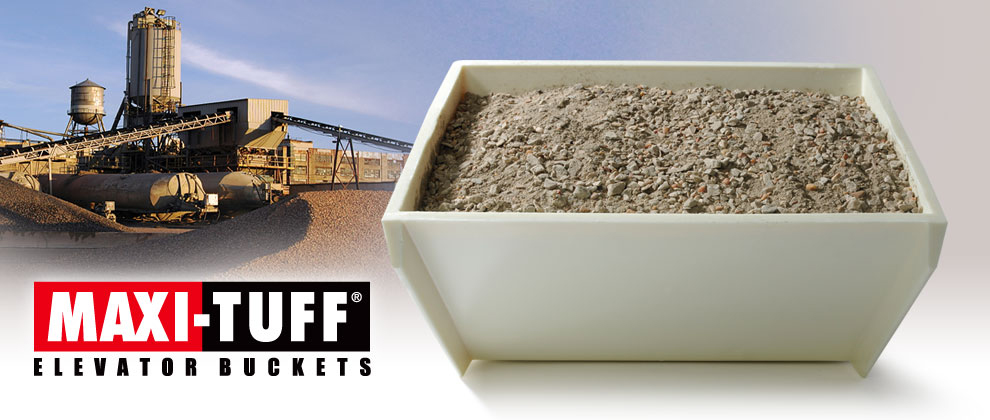

The Maxi-Tuff MF Medium Front continuous elevator bucket has the traditional shape of an MF steel elevator bucket. It also has a heavy reinforced lip and corners with a thickened back wall for mounting strength. Standard vertical spacing is depth + 1/4″. The most common applications include fertilizer, clay, alumina and pellets. The Maxi-Tuff MF is the best bucket for fluffy or free flowing materials or those which require gentle handling.
FEATURES
- Reduces weight on elevator up to 80%
- Cleaner discharge than steel buckets
- Non-corrosive, non-sparking
- Thicker walls
- Heat, impact and abrasion resistant
BENEFITS
- Lowers elevator maintenance
- Reduces energy usage
- Extends bucket life
- Decreases elevator down-time
- Easier to install and replace
- Reduces build-up in bottom of buckets
- Saves money versus carbon steel
Size Chart
MOUNTING HOLES AND VENTING TO YOUR SPECIFICATIONS
| Bucket Size, Inches | Weight, Lbs. | Capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Length (L) | Proj. (P) | Depth (D) | Backwall Thickness | Polyethylene | Nylon | Urethane | Water Level Cu. Inches(X-X) | Capacity Cu. Feet (X-X) | Std. Spacing |
| 8x5x7 | 8 1/4 | 5 1/2 | 7 1/2 | 0.38 | 1.70 | 1.97 | 2.37 | 80.56 | 0.047 | 8 |
| 10x5x7 | 10 1/4 | 5 1/2 | 7 1/2 | 0.395 | 2.04 | 2.32 | 2.86 | 94.90 | 0.055 | 8 |
| 12x7x11 | 12 1/4 | 7 1/2 | 11 1/2 | 0.35 | 3.62 | 4.00 | 4.80 | 172.63 | 0.10 | 12 |
| 14x7x11 | 14 1/4 | 7 1/2 | 11 1/2 | 0.325 | 3.88 | 4.53 | 5.33 | 201.30 | 0.117 | 12 |
| 16x7x11 | 16 1/4 | 7 1/2 | 11 1/2 | 0.325 | 4.39 | 4.97 | 5.97 | 238.81 | 0.138 | 12 |
| 18x7x11 | 18 1/4 | 7 1/2 | 11 1/2 | 0.325 | 4.95 | 5.83 | 6.74 | 244.31 | 0.141 | 12 |
| 12x8x11 | 12 1/4 | 8 1/2 | 11 1/2 | 0.325 | 4.32 | 4.81 | 5.65 | 274.60 | 0.159 | 12 |
| 14x8x11 | 14 1/4 | 8 1/2 | 11 1/2 | 0.325 | 4.57 | 5.26 | 6.28 | 335.61 | 0.194 | 12 |
| 16x8x11 | 16 1/4 | 8 1/2 | 11 1/2 | 0.325 | 5.17 | 5.81 | 7.03 | 396.63 | 0.23 | 12 |
| 18x8x11 | 18 1/4 | 8 1/2 | 11 1/2 | 0.325 | 5.83 | 6.77 | 7.94 | 467.65 | 0.271 | 12 |
** Actual dimensions may vary slightly on all elevator buckets, depending on specified raw material.
Available Materials
| Materials | Polyethylene | Nylon | Urethane | FDA Nylon |
|---|---|---|---|---|
| Color |  White |
 Tan |
 Green |
White |
| Application | Grain & Food Products | Hot, high impact, abrasive dense products | Heavy abrasion, sticky materials | Hot, high impact, abrasive food grade products |
| Temperature Range | -120°F to +180°F (210°F intermittent) |
-60°F to +300°F (350°F intermittent) |
-60°F to +180°F (210°F intermittent) |
-60°F to + 300°F |
| FDA Approved Material | Yes | No | Yes | Yes |
| Comments | Economical, high density polyethylene. FDA approved material for handling food grade products. | Best for high heat applications, with tough impact and abrasion needs. | Most flexible and abrasion resistant. Resists product sticking and sharp cutting particles. | Best for high heat food grade applications, with tough impact and abrasion needs. |
