Features&Benefits

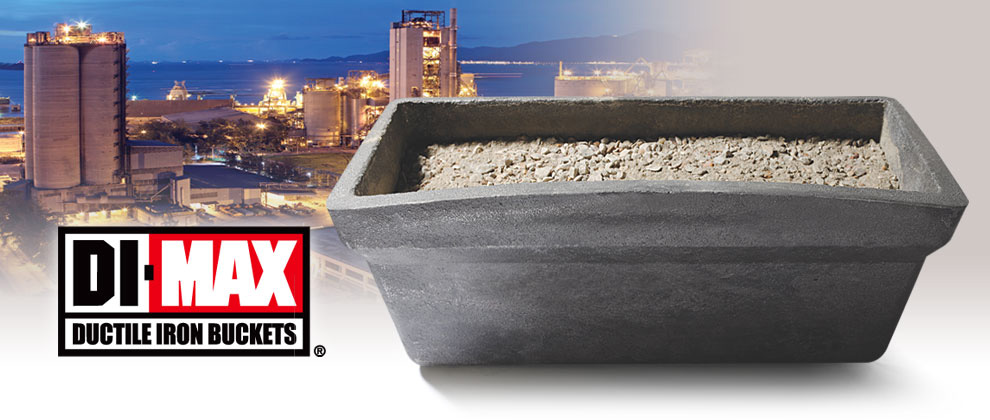

The DI-MAX AC style ductile iron elevator buckets are engineered to exceed the performance requirements of any industrial application. These buckets are designed with thicker walls and a reinforced front lip to increase bucket life in tough industrial environments. Ductile iron is far superior to malleable iron in both impact and abrasion resistance. Replacing malleable iron with DI-MAX ductile iron elevator buckets will result in longer bucket life and more efficient operation.

FEATURES

  • Mill duty, thick walls with reinforced back and corners
  • Extremely high impact and abrasion resistance
  • Applications up to 600 degrees
  • Non-corrosive, non-sparking
  • Designed to handle sand, glass cullet, stone, shot blast, rock, concrete and other abrasive products
  • DI-MAX has a Brinell hardness of 297

BENEFITS

  • Long wearing digging edges
  • Stronger than steel of the same gauge
  • Smooth surface to ensure proper filling
  • Strong impact and abrasion resistance for long life
Size Chart
DI-Max AC CAD Drawing

MOUNTING HOLES AND VENTING TO YOUR SPECIFICATIONS

Bucket Size, Inches Thickness Capacity, Cu. Inches Weight, Lbs.
Size Length (L) Proj. (P) Depth (D) Backwall Thickness Front Corner Thickness Front Lip Thickness Water Level, Cu. Inches 100% Gross Capacity, Cu. Inches Weight
12×8 12 1/2 9 1/4 9 0.425 0.575 0.55 368.90 472.40 28
16×8 16 1/2 9 1/4 9 0.425 0.60 0.55 508.10 651.40 38
18×10 18 3/4 11 1/2 11 0.55 0.675 0.70 874.50 1139.20 70
24×10 24 3/4 11 3/4 11 0.41 0.725 0.60 1231.60 1570.90 72



** Actual dimensions may vary slightly on all elevator buckets, depending on specified raw material.
