Features&Benefits

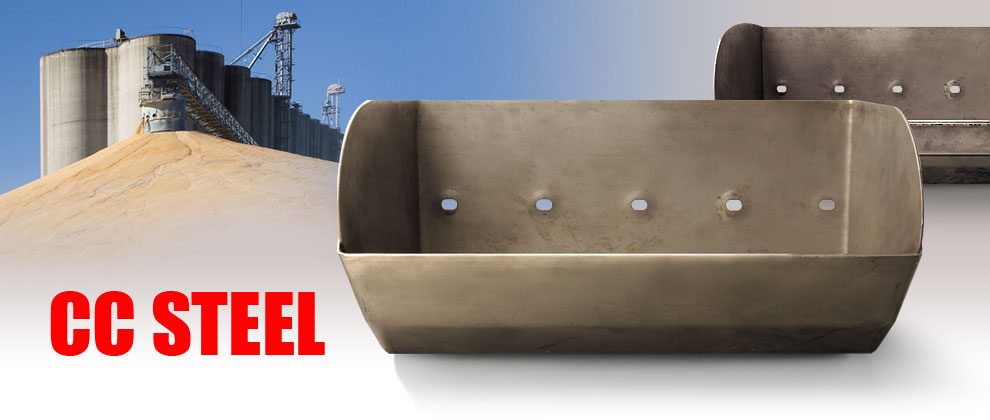

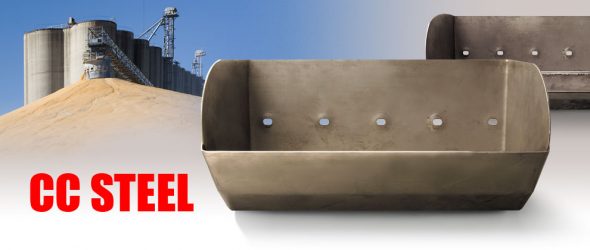

Made of mild steel for mounting on belt or chain. Traditional agriculture style bucket can also be transformed into a heavier gauge steel for lighter weight industrial duty applications. Elevator buckets can be made from 18GA to 1/4″ thick carbon steel and stainless steel. Buckets are vented as #3 standard. Buckets are spot welded.
Size Chart
CC Steel CAD Drawing

MOUNTING HOLES AND VENTING TO YOUR SPECIFICATIONS ON SPECIAL ORDERS

Bucket Size, Inches Punching, Inches Weight, Lbs. Capacity, Cu. Inches
Size Proj. (P) Depth (D) Centers (E) # Of Holes Bolt Size Std. Gauge Approx. Weight Gross Capacity Std. Spacing Carton Qty.
4X3 3 3/16 2 11/16 2 1/2 2 1/4 16 0.62 22 5 84
4X4 4 3/16 4 2 1/2 2 1/4 18 0.90 39 6 84
5X4 4 3/16 4 3 3/16 2 1/4 18 0.95 52 6 84
6X4 4 3/16 4 4 3/8 2 1/4 18 1.10 62 6 84
7X4 4 3/16 4 2 11/16 3 1/4 18 1.25 70 6 84
8X4 4 3/16 4 3 1/16 3 1/4 18 1.50 79 6 84
9X4 4 3/16 4 3 5/8 3 1/4 18 1.70 90 6 56
6X5 5 1/4 5 4 3/8 2 1/4 16 1.60 94 7 54
7X5 5 1/4 5 2 11/16 3 1/4 16 1.75 110 7 54
8X5 5 1/4 5 3 1/16 3 1/4 16 2.00 125 7 54
9X5 5 1/4 5 3 5/8 3 1/4 16 2.50 140 7 36
10X5 5 1/4 5 4 1/8 3 1/4 16 2.70 155 7 36
11X5 5 1/4 5 3 4 1/4 16 2.90 170 7 36
12X5 5 1/4 5 3 3/8 4 1/4 16 3.00 185 7 36
7X6 6 5/16 6 2 11/16 3 1/4 16 2.85 155 8 36
8X6 6 5/16 6 3 1/16 3 1/4 16 3.10 178 8 36
9X6 6 5/16 6 3 5/8 3 1/4 16 3.40 202 8 24
10X6 6 5/16 6 4 1/8 3 1/4 16 3.50 222 8 24
11X6 6 5/16 6 3 4 1/4 16 3.75 244 8 24
12X6 6 5/16 6 3 3/8 4 1/4 16 4.00 267 8 24
13X6 6 5/16 6 3 5/8 4 1/4 16 4.50 289 8 24
14X6 6 5/16 6 3 5 1/4 16 4.75 312 8 24
8X7 7 3/16 7 3 1/16 3 5/16 14 4.60 242 9 24
9X7 7 3/16 7 3 5/8 3 5/16 14 4.80 276 9 24
10X7 7 3/16 7 4 1/8 3 5/16 14 5.00 302 9 16
11X7 7 3/16 7 3 4 5/16 14 5.25 333 9 16
12X7 7 3/16 7 3 3/8 4 5/16 14 6.25 362 9 16
13X7 7 3/16 7 3 5/8 4 5/16 14 6.75 393 9 16
14X7 7 3/16 7 3 5 5/16 14 7.00 424 9 16
15X7 7 3/16 7 3 1/4 5 5/16 14 7.50 454 9 8
16X7* 7 3/16 7 2 7/8 6 5/16 14 8.00 486 9 8
18X7* 7 3/16 7 3 1/8 6 5/16 14 8.50 544 9 8
20X7* 7 3/16 7 3 1/2 6 5/16 14 9.25 605 9 8
22X7* 7 3/16 7 4 6 5/16 14 10.00 664 9 8
24X7* 7 3/16 7 3 1/2 7 5/16 14 10.75 725 9 8
9X8 8 1/8 8 3 5/8 3 5/16 14 5.60 349 10 16
10X8 8 1/8 8 4 1/8 3 5/16 14 6.10 388 10 16
11X8 8 1/8 8 3 4 5/16 14 6.75 427 10 16
12X8 8 1/8 8 3 3/8 4 5/16 14 7.50 466 10 16
13X8 8 1/8 8 3 5/8 4 5/16 14 7.75 505 10 16
14X8 8 1/8 8 3 5 5/16 14 8.25 543 10 16
15X8 8 1/8 8 3 1/4 5 5/16 14 8.50 582 10 8
16X8* 8 1/8 8 2 7/8 6 5/16 14 9.00 621 10 8
17X8* 8 1/8 8 3 6 5/16 14 9.50 660 10 8
18X8* 8 1/8 8 3 1/8 6 5/16 14 9.75 698 10 8
20X8* 8 1/8 8 3 1/2 6 5/16 14 10.75 776 10 8
22X8* 8 1/8 8 4 6 5/16 14 11.50 854 10 8
24X8* 8 1/8 8 3 1/2 7 5/16 14 12.00 931 10 8

* SUPPLIED WITH LIP BRACE. LIP BRACE IS OPTIONAL ON OTHER SIZES AT SLIGHTLY HIGHER COST.

** OTHER SIZES AVAILABLE ON REQUEST

#3 VENT PATTERN DOES NOT INCLUDE HOLES ON ENDS OF ELEVATOR BUCKET. USABLE CAPACITY IS BASED ON 75% GROSS CAPACITY.

** Actual dimensions may vary slightly on all elevator buckets, depending on specified raw material.
